SMALL FORM FACTOR | FLIGHT HERITAGE | trl 9
What is SelfieCam Video

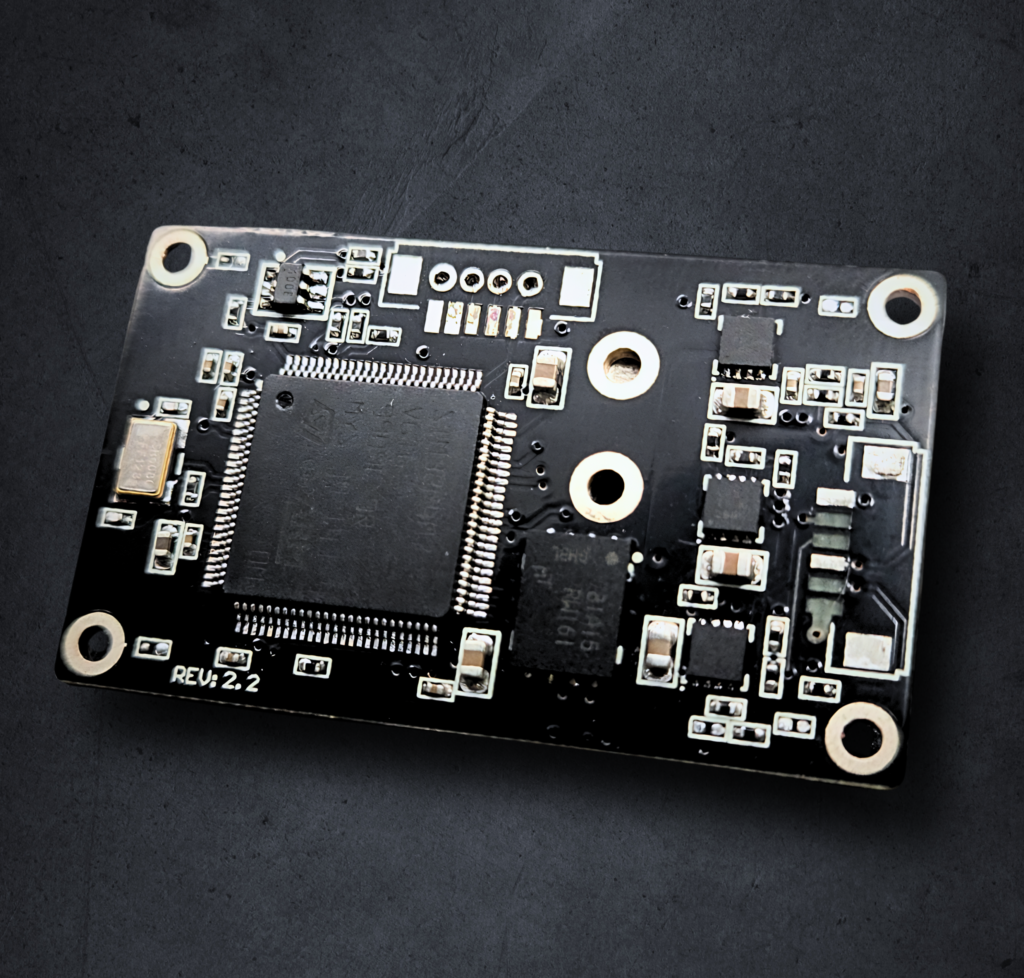

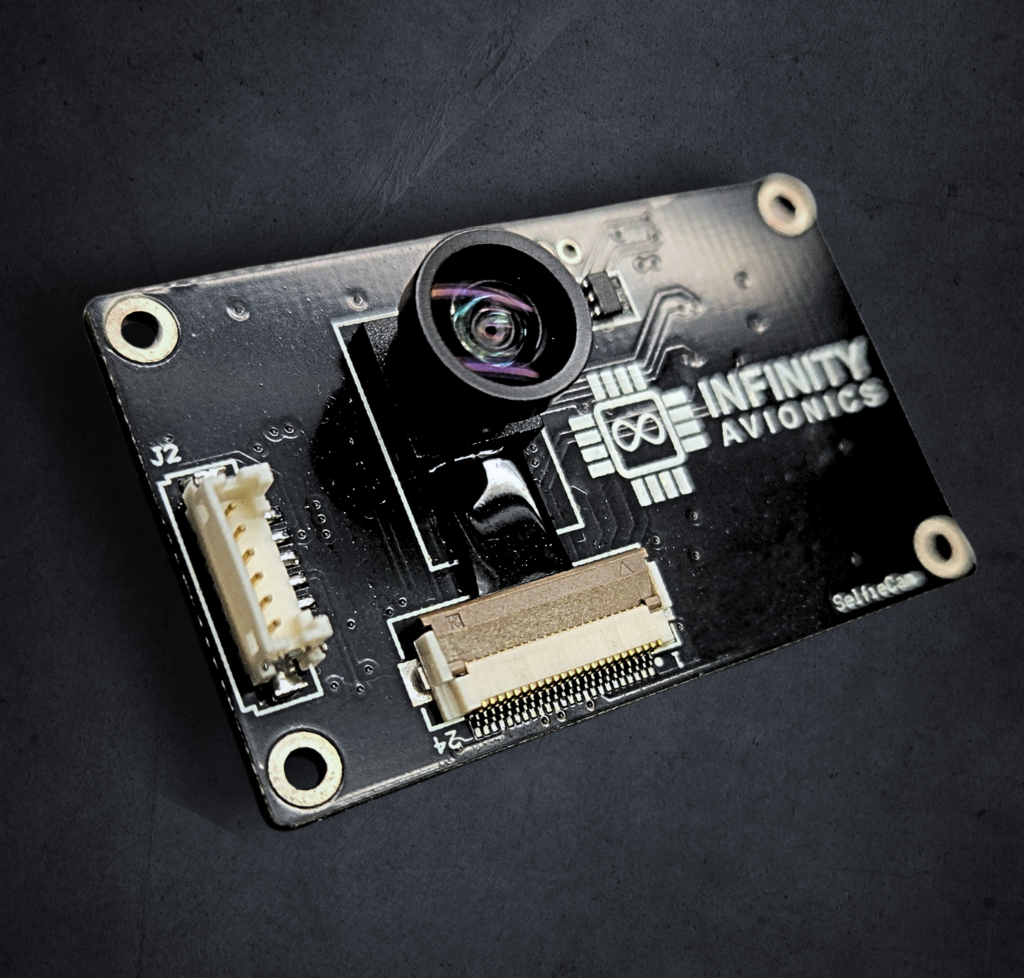

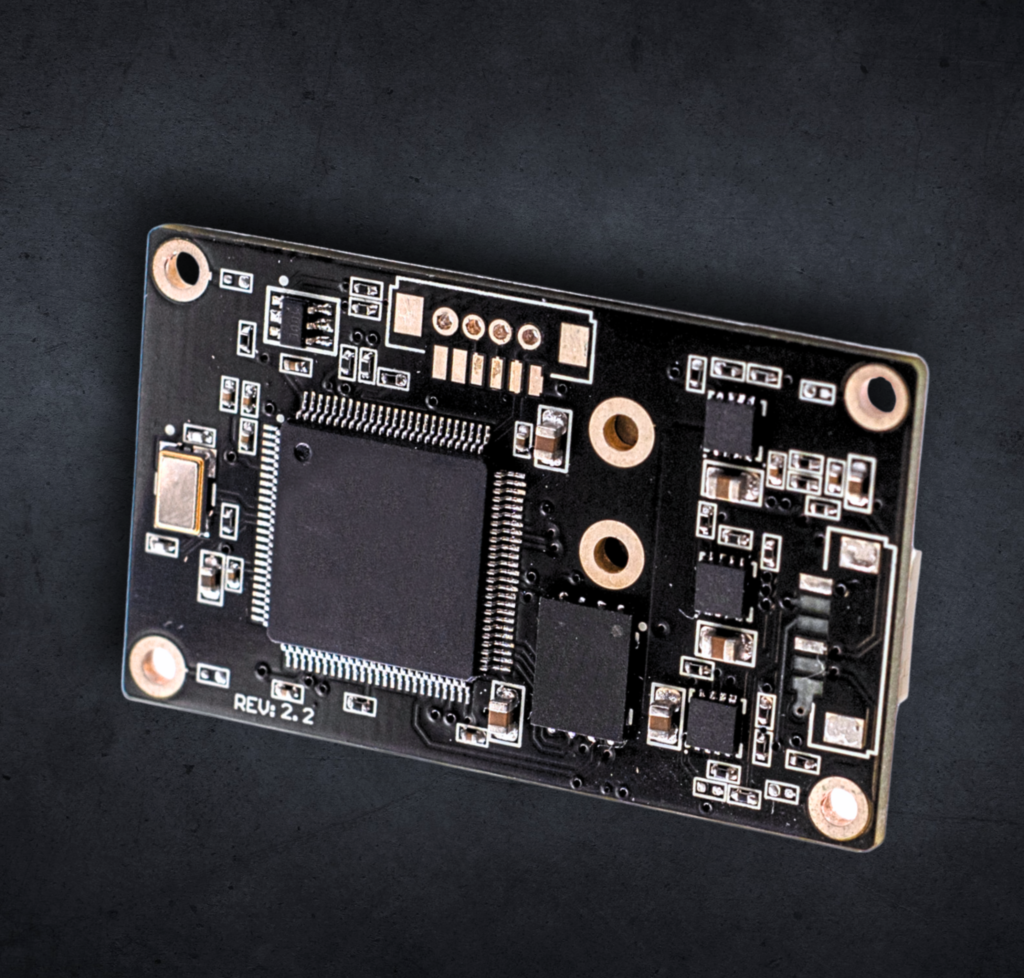

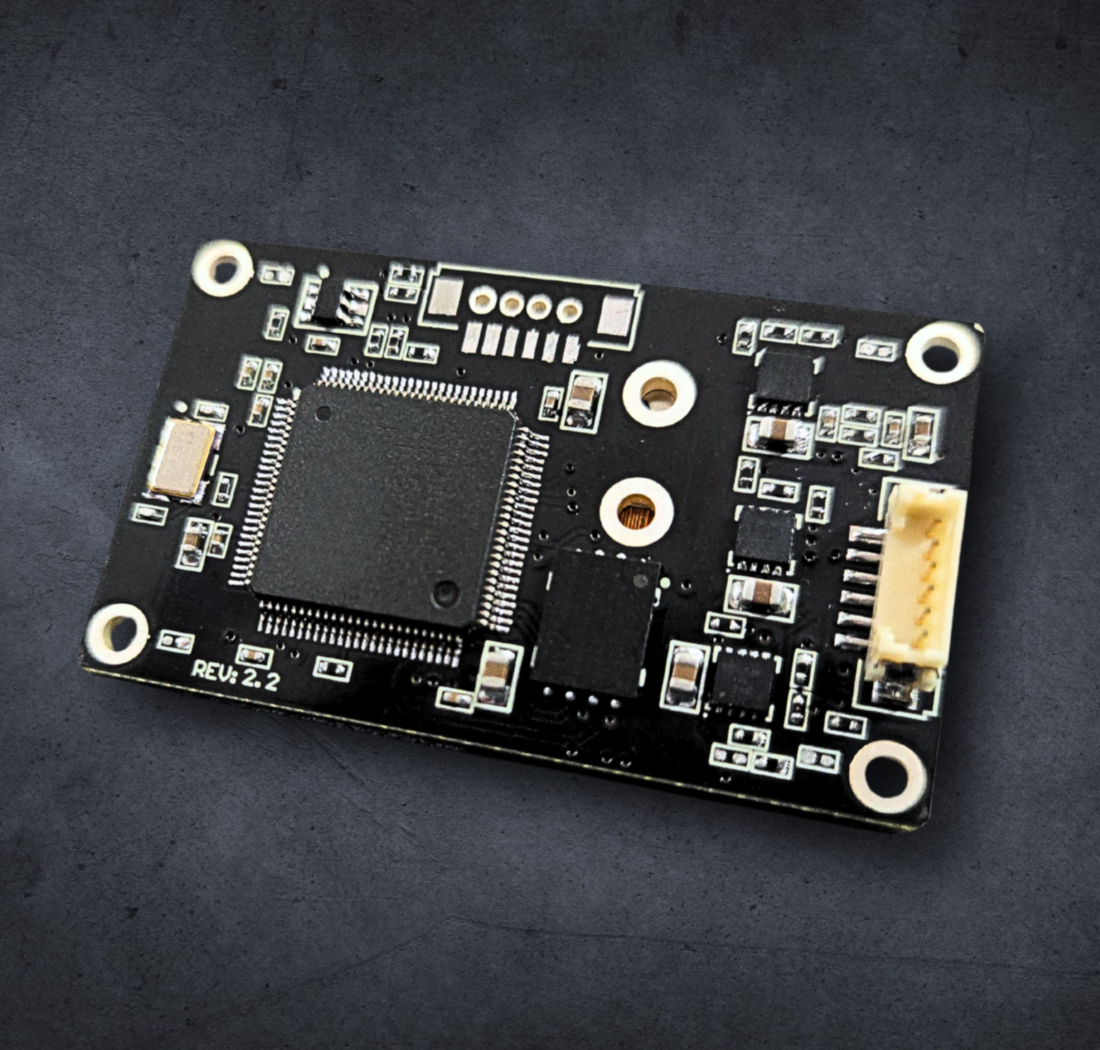

SelfieCam is a small form factor spacecraft deployment monitoring camera with TRL 9, designed to support deployment monitoring, space situational awareness, and In-Space Manufacturing (ISM).
Non-Volatile Memory
The camera can capture and save images in non-volatile memory. It is designed with ease of integration and operation in mind, providing on-orbit imaging capability to your mission.
Up to 12FPS Image Capture
SelfieCam can capture and save JPEG compressed image frames up to 12 FPS allowing spacecraft deployment monitoring.
Easy data downlink
On-board JPEG encoding enables small image sizes to support easy data downlink even with a weaker communication link. SelfieCam can be directly mounted on spacecraft chassis.
Selfiecam video Specifications
| PARAMETER | VALUE |
|---|---|
| Image sensor | CMOS RGB Rolling shutter |
| Resolution | 1024 x 768 |
| Image encoding | JPEG |
| Field of view | 40/90/110 degrees |
| MRAM Memory | 4 Mbit |
| On-board storage | 500 images |
| Power consumption | 750mW |
| Frame rate | Up to 12 FPS |
| Communication interface | UART with ASCII commands |
| Operating temperature | -20°C to 60°C |
| Mass | 10 grams |
| Dimensions | 50 mm x 30 mm |
| Total ionizing dose | Up to 30 kRad |
| Baud rate | 115200 |
| Supply voltage | 5 V |
| TRL | 9 |
