Up to 2MP Resolution | image data streaming | 12FPS
What is Leo2MP

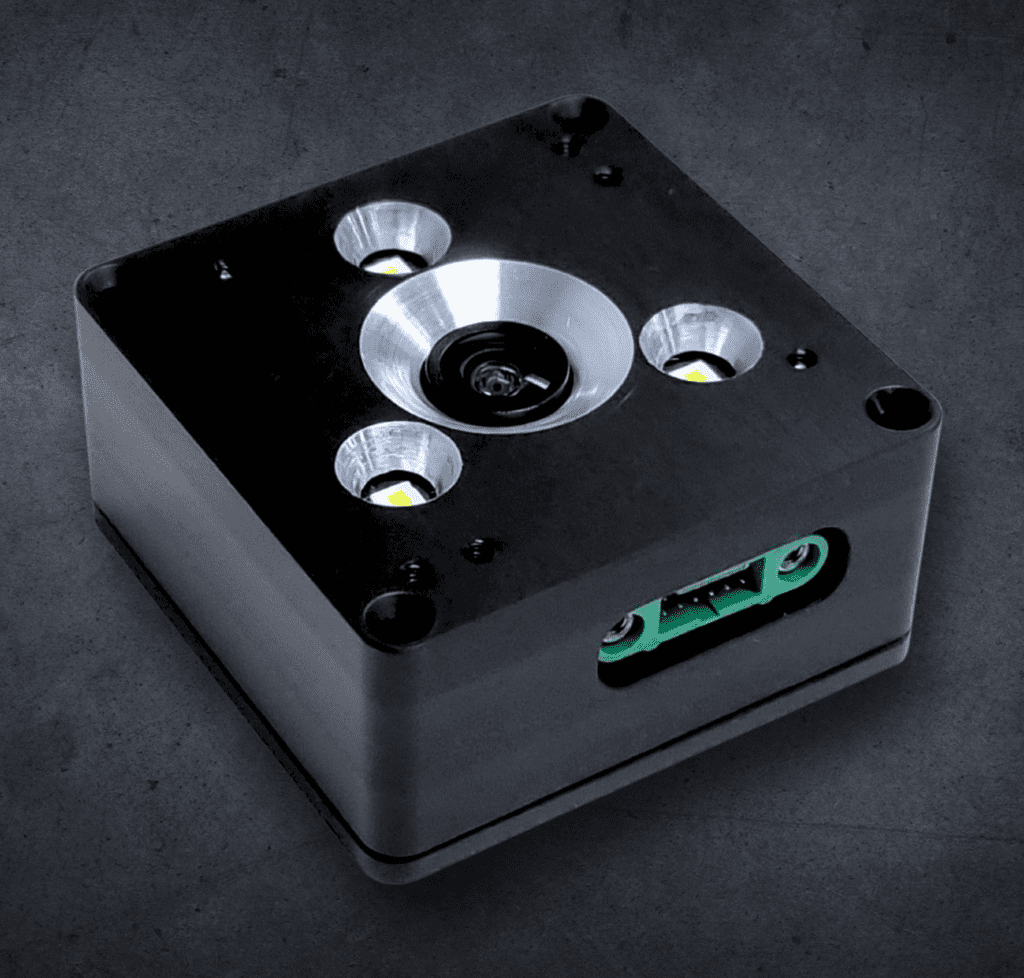

Leo2MP is a spacecraft close proximity camera designed for space applications. Leo2MP can support image capture and save on-board or stream over the USB2 interface.
Applications
The camera is ideal for monitoring spacecraft structures or deployment activities, space manufacturing and robotics as well as rover applications.
LED Ilumination

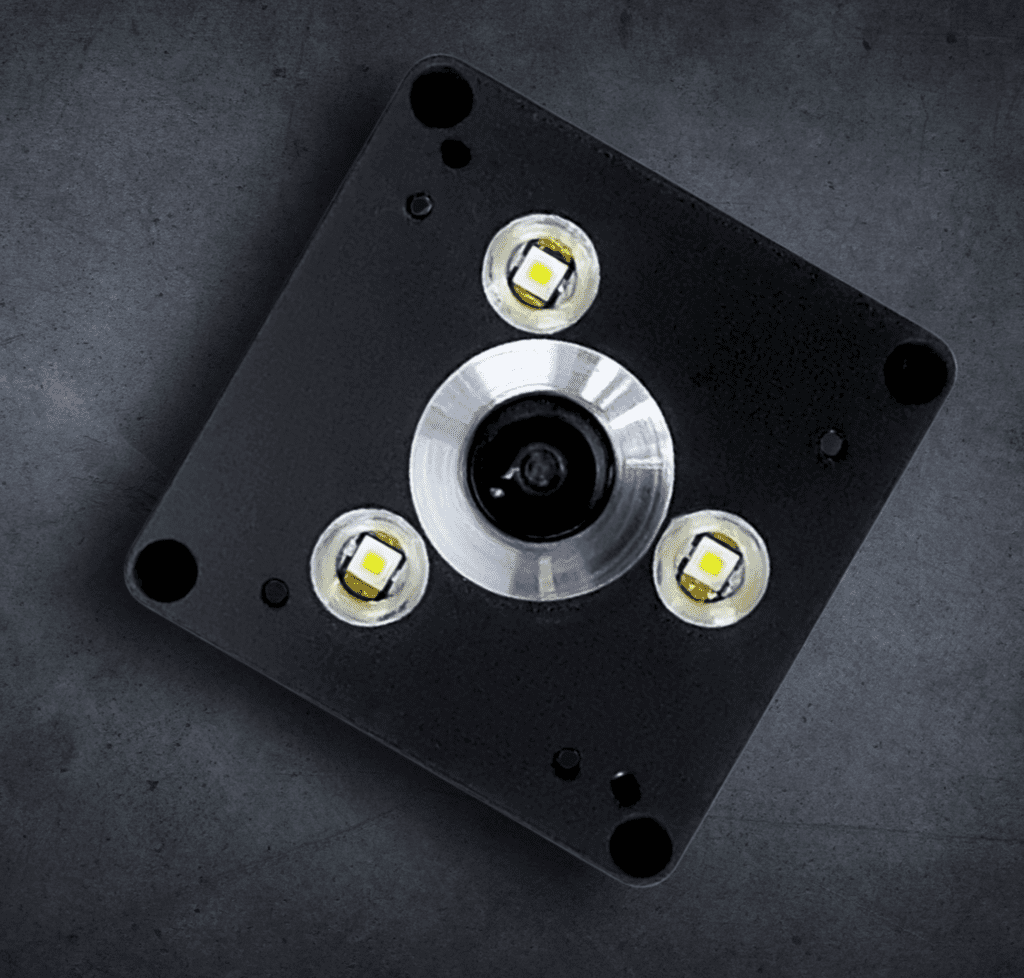

Leo2MP comes with LED illumination to support challenging space lighting conditions.
Real Time Data Streaming
Leo2MP and BRAIN edge processor can be used to support real time image data streaming to support space situational awareness, RPOD, and space robotics applications.
Leo2mp Specifications
| Technical Specifications | |
|---|---|
| Image sensor | CMOS RGB Rolling shutter |
| Pixel resolution | 1200 x 1600 1024 x 768 800 x 600 640 x 480 |
| Pixel size | 2.2 µm |
| Spectral range | VIS |
| Field of view (degrees) | 110° |
| Focal length | 1mm |
| Optical assembly | Integrated optics with the sensor |
| Image encoding | JPEG |
| Frames per second | Up to 12 FPS (resolution dependent) |
| On-board storage / flash memory | 200 images |
| Communication / control interface | UART – ASCII commands |
| Image / bulk data interface | UART / USB2 |
| Input voltage / power supply | 5 V DC |
| Power consumption | 1 W (without LED) / 3.5 W (with LED) |
| Size / dimensions | 45 mm × 45 mm × 20 mm |
| Weight / mass | 65 g |
| Operating temperature | −20°C to 60°C |
| Recommended temperature for imaging | −20°C to 60°C |
| Total ionizing dose | Up to 30 kRad |
| LED luminous flux | 150 lm |
| TRL | 9 |
