CUSTOMIZABLE | 12MP Space Camera for Earth Observation & space domain awareness
What is Orion12MP
Orion12MP is a 12 Megapixel RGB/ Monochrome camera back end electronics unit which can be combined with application specific optical assemblies.

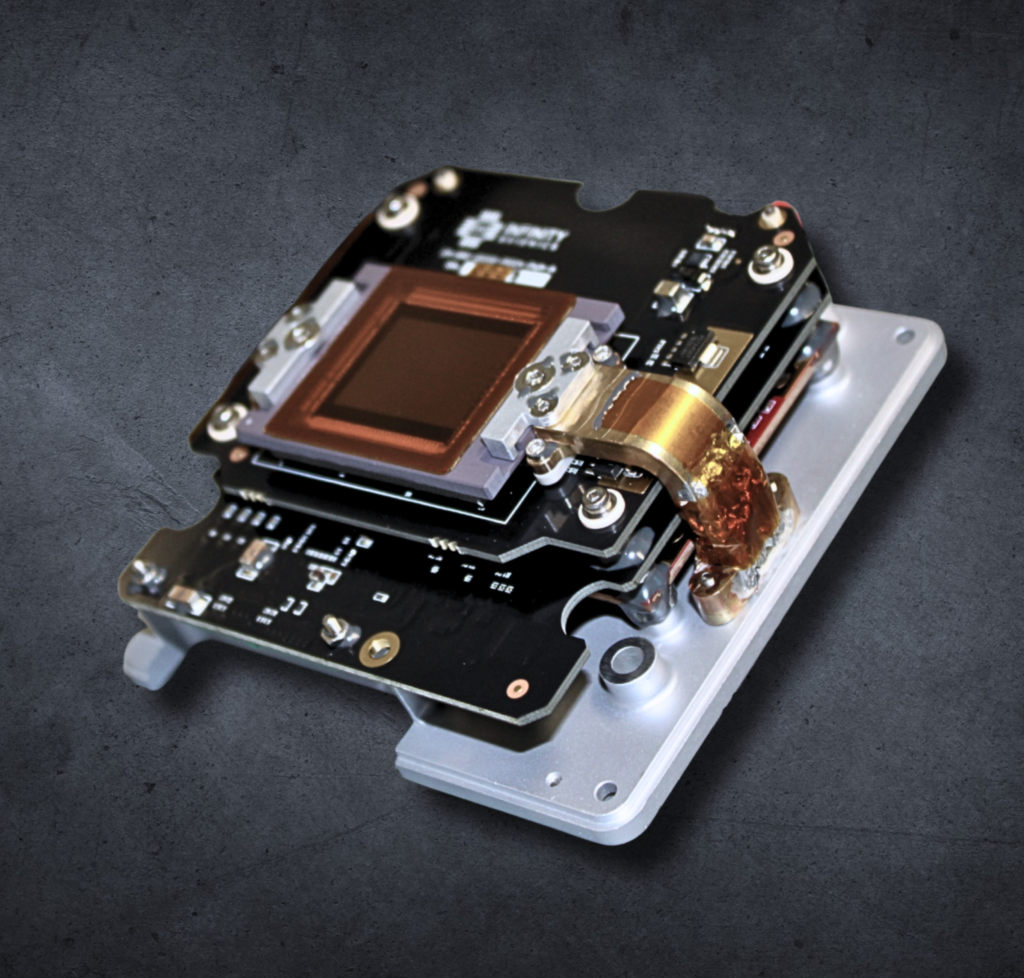

High FPS Image Capture Capability
Unlike standard monitoring cameras, the Orion12MP utilizes a global shutter and 100 FPS capture to eliminate motion blur during high-velocity maneuvers. For missions that do not require high-speed data collection and instead prioritize ultra-low power consumption for simple visual confirmation, our SelfieCam Video and Leo2MP provide a lightweight, TRL 9 alternative.
Application
Orion12MP is suitable for a range of space applications such as Earth observation, hyperspectral imaging, space based space surveillance, and docking/rendezvous applications based on the selected optical assembly.

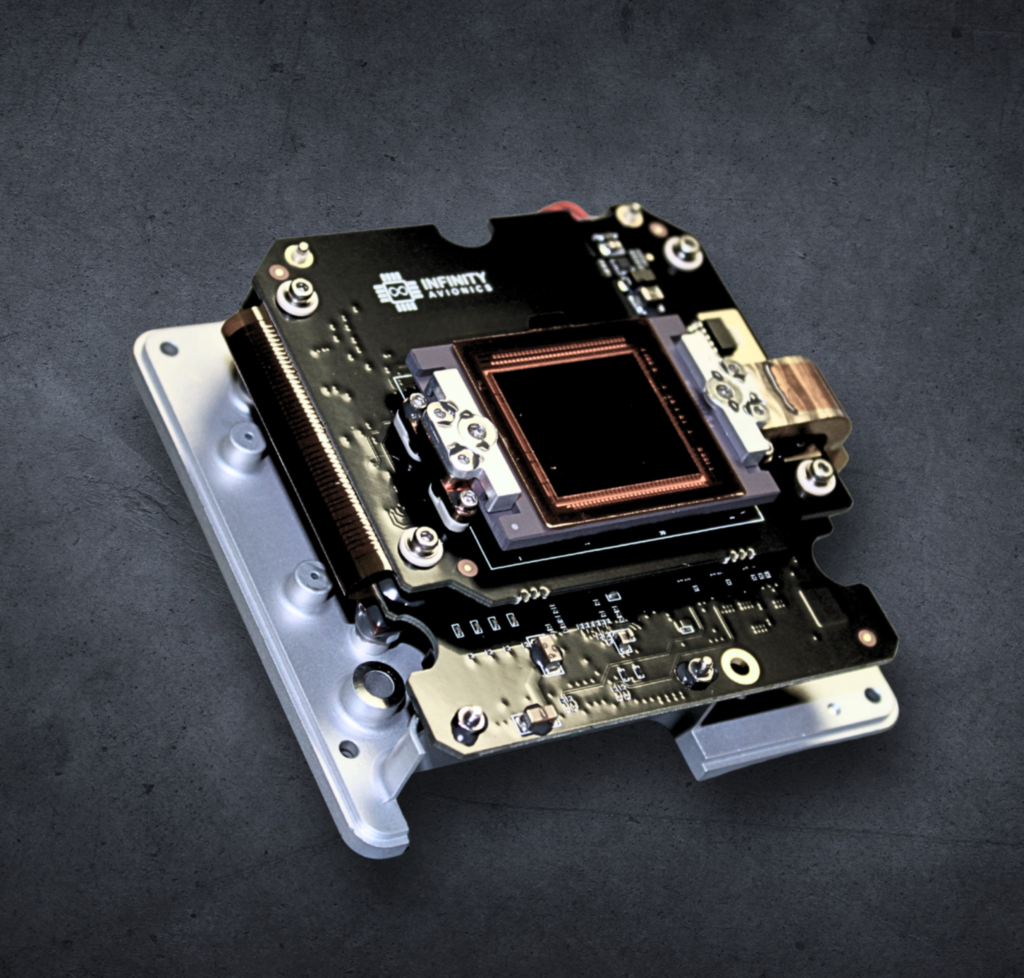

Highly Customizable
Orion12MP is designed leveraging a modular methodology providing the ability to customize the camera with different sensors and interface options with reduced engineering effort and cost. The system has been qualified for thermal vacuum, vibration and shock.
Orion12mp Specifications
| Technical Specifications | |
|---|---|
| Image sensor | CMOS Global shutter |
| Pixel resolution | 4096×3072 (12 MP) |
| Pixel size | 5.5 µm |
| Spectral bands | RGB / Monochrome |
| Image encoding | RAW |
| Frames per second | Up to 100 FPS at full resolution |
| On-board storage / flash memory | 256 GB |
| On-board RAM | Up to 290 full-resolution images |
| Communication / control interface | UART / RS485 / Ethernet |
| Image / bulk data interface | UART / RS485 / Ethernet |
| Input voltage / power supply | 5 V DC |
| Power consumption | 2.5 W Idle/ 6W max |
| Size / dimensions | 96 mm x 91 mm x 37 mm |
| Weight / mass | 290 g |
| Operating temperature | −10°C to 60°C |
| Recommended temperature for imaging | −10°C to 60°C |
| TRL | 9 |
orion12mp optical options

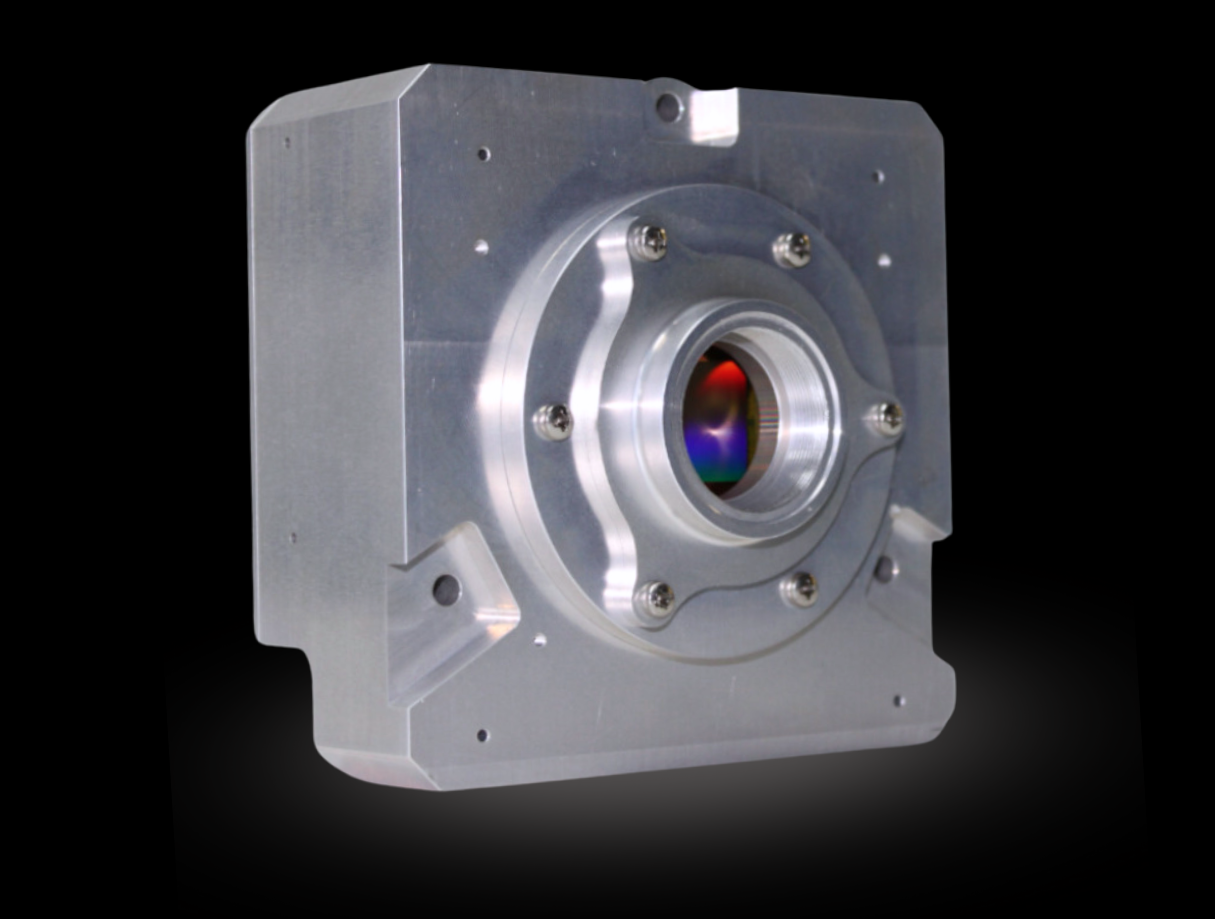

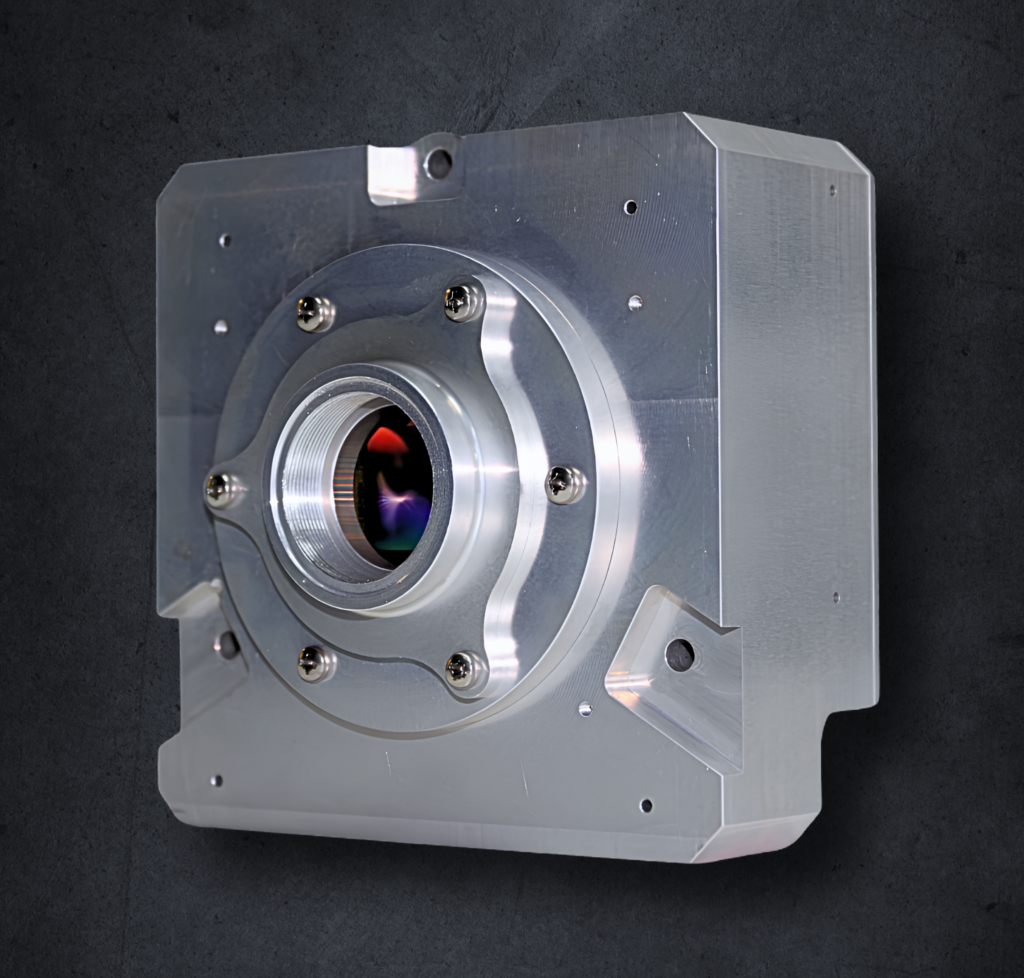

Orion12MP
Orion12MP backend specifications. Our Orion12MP cameras are trusted by commercial and government organizations worldwide.
| Technical Specifications | |
|---|---|
| Image sensor | CMOS Global shutter |
| Pixel resolution | 4096×3072 (12 MP) |
| Pixel size | 5.5 µm |
| Spectral bands | RGB / Monochrome |
| Image encoding | RAW |
| Frames per second | Up to 100 FPS at full resolution |
| On-board storage / flash memory | 256 GB |
| On-board RAM | Up to 290 full-resolution images |
| Communication / control interface | UART / RS485 / Ethernet |
| Image / bulk data interface | UART / RS485 / Ethernet |
| Input voltage / power supply | 5 V DC |
| Power consumption | 2.5 W Idle/ 6W max |
| Size / dimensions | 96 mm x 91 mm x 37 mm |
| Weight / mass | 290 g |
| Operating temperature | −10°C to 60°C |
| Recommended temperature for imaging | −10°C to 60°C |
| TRL | 9 |

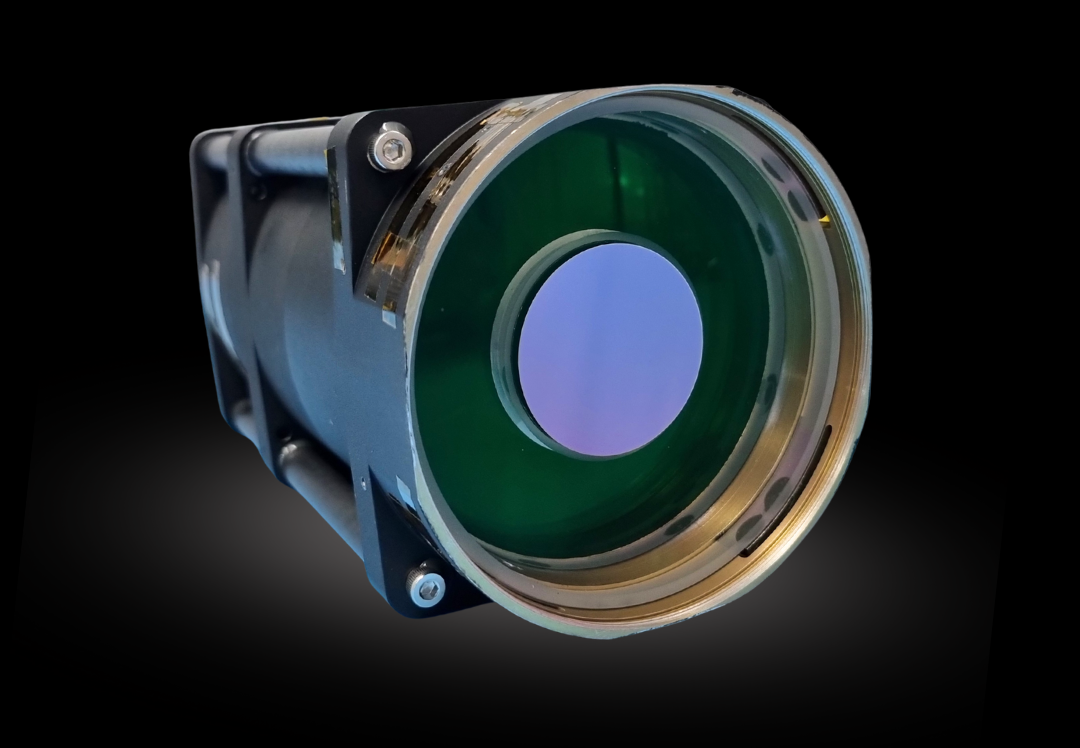

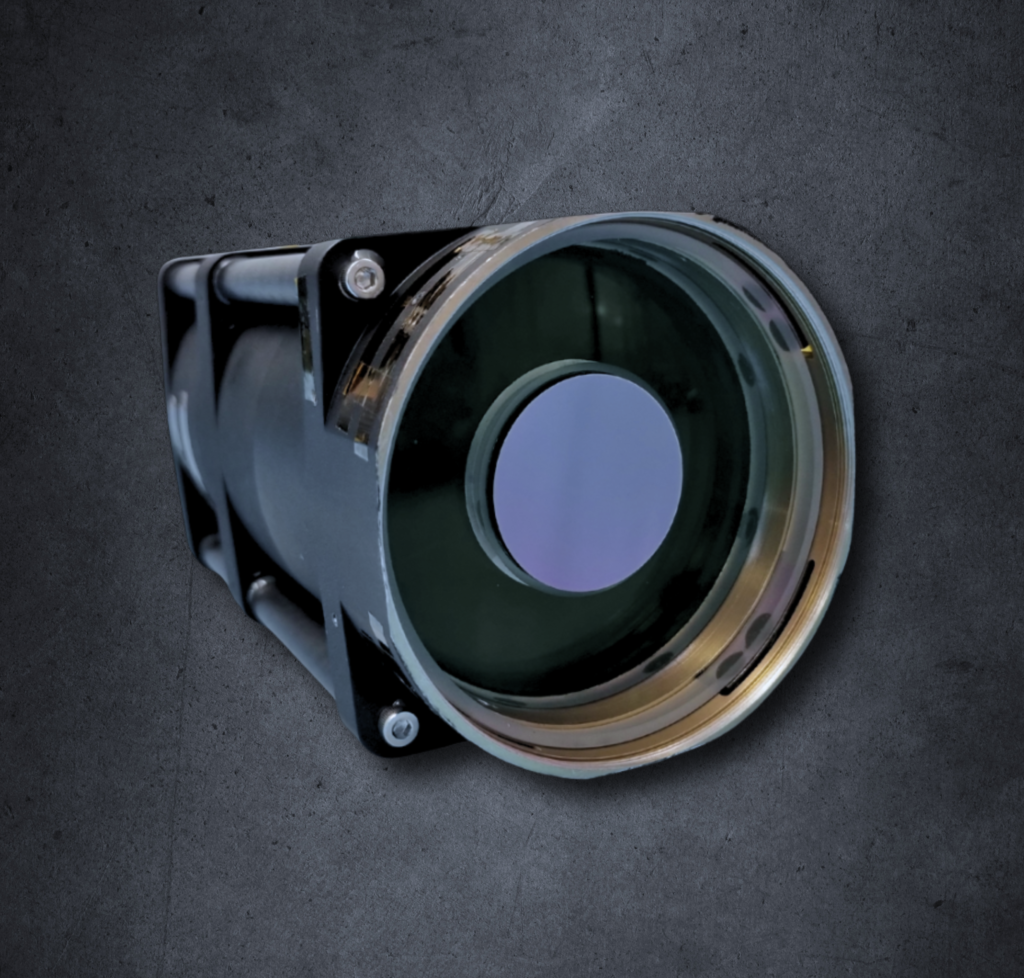

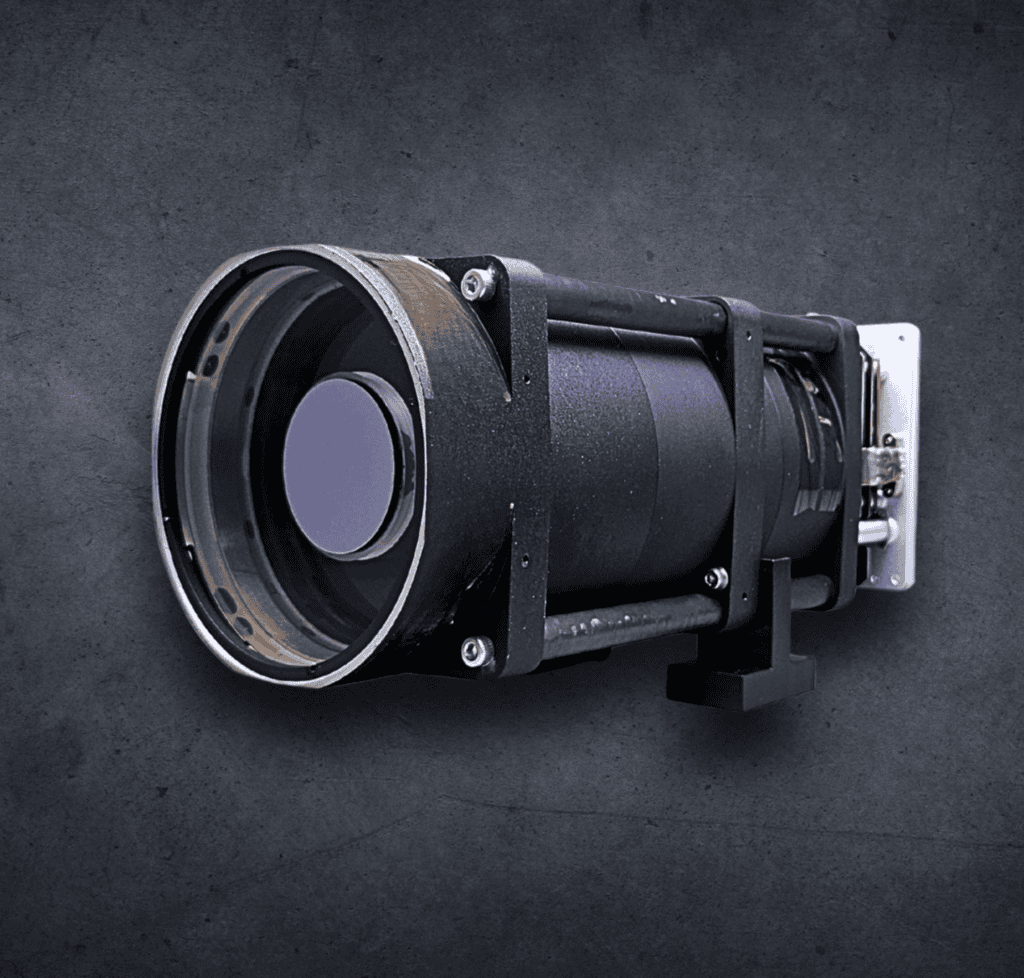

Orion12MP-550
Orion12MP-550 camera comes with a 550mm focal length space grade optical assembly to support earth observation and space based space surveillance applications.
| Technical Specifications | |
|---|---|
| Image sensor | CMOS Global shutter |
| Pixel resolution | 4096×3072 (12 MP) |
| Pixel size | 5.5 µm |
| Spectral range | 400 nm – 1000 nm (customisable) |
| Spectral bands | RGB / Monochrome |
| Field of view (degrees) | 1.75° |
| Focal length | 550 mm |
| F number | F/6 |
| Optical assembly | Space-qualified 550 mm assembly |
| Spatial resolution / GSD | 5 m at 500 km orbit |
| Image encoding | RAW |
| Frames per second | Up to 100 FPS at full resolution |
| On-board storage / flash memory | 256 GB |
| On-board RAM | Up to 290 full-resolution images |
| Communication / control interface | UART / RS485 / Ethernet |
| Image / bulk data interface | UART / RS485 / Ethernet |
| Input voltage / power supply | 5 V DC |
| Power consumption | 2.5 W Idle/ 6W max |
| Size / dimensions | 100 mm × 100 mm × 250 mm |
| Weight / mass | 1.5 kg |
| Operating temperature | −10°C to 60°C |
| Recommended temperature for imaging | −10°C to 60°C |
| TRL | 6 |
