Up to 2MP Resolution | image data streaming | 12FPS

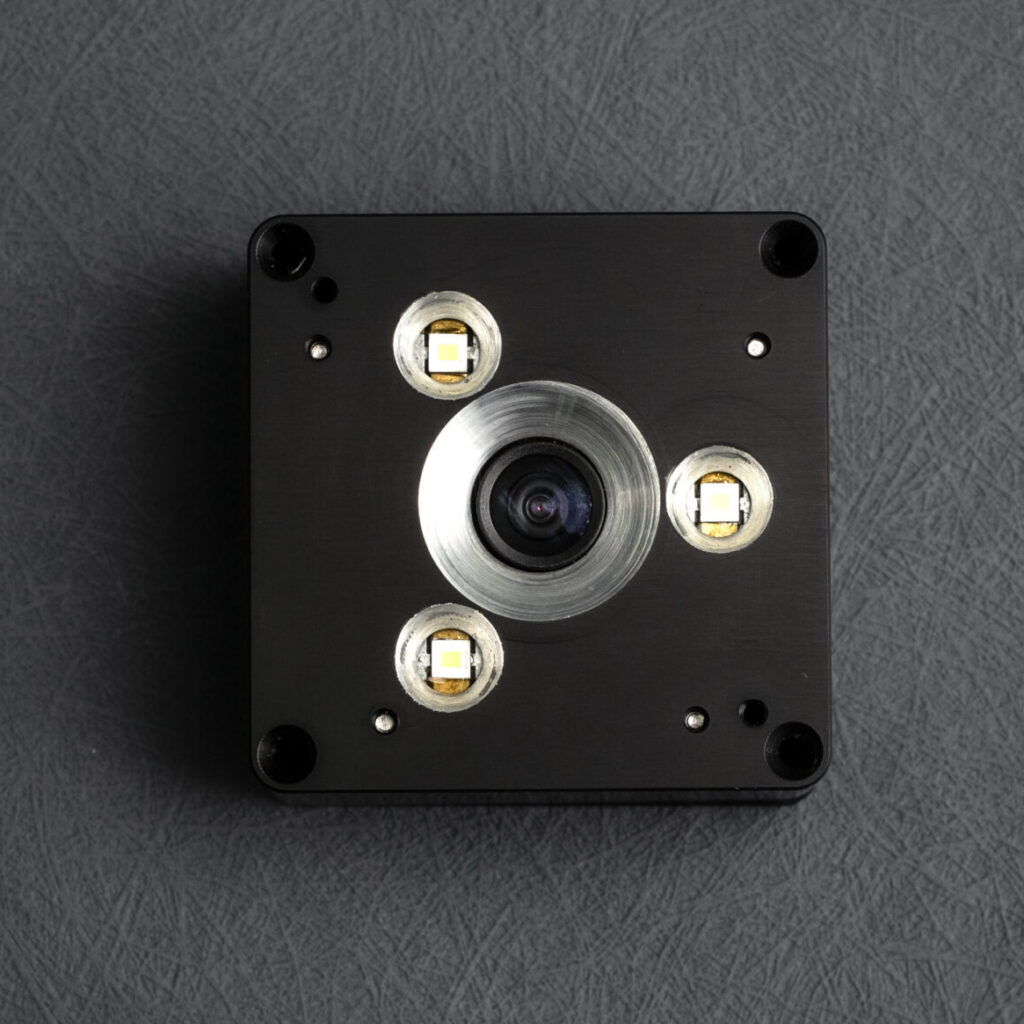

What is Leo2MP
Leo2MP is a spacecraft close proximity camera designed for space applications. Leo2MP can support image capture and save on-board or stream over the USB2 interface.
Applications
The camera is ideal for monitoring spacecraft structures or deployment activities, space manufacturing and robotics as well as rover applications.
LED Ilumination
Leo2MP comes with LED illumination to support challenging space lighting conditions.
Real Time Data Streaming
Leo2MP and BRAIN edge processor can be used to support real time image data streaming to support space situational awareness, RPOD, and space robotics applications.
Leo2mp Specifications
| PARAMETER | VALUE |
|---|---|
| Image sensor | CMOS RGB - Rolling shutter |
| Resolution | Selectable up to 2MP |
| Field of view | 110 degrees |
| Image encoding | JPEG |
| On-board storage | 200 images |
| Power consumption | 1 W (without LED) 3.5 W (with LED) |
| Image data interface | UART / USB2 - JPEG encoded |
| Communication Interface | UART - ASCII commands |
| Power consumption | 1 W (Without LED illumination) 3.5 W (With LED illumination) |
| Frame rate | Up to 12 FPS (resolution dependent) |
| Interface | UART/ USB2 |
| Operating temperature | -20 C to 60 C |
| Mass | 65 grams |
| Dimensions | 45 mm x 45 mm x 20mm |
| LED luminous flux | 150 lm |
| Total ionizing dose | Up to 30 kRad |
| TRL | 9 |
