SMALL FORM FACTOR | DEMONSTRATED FLIGHT HERITAGE

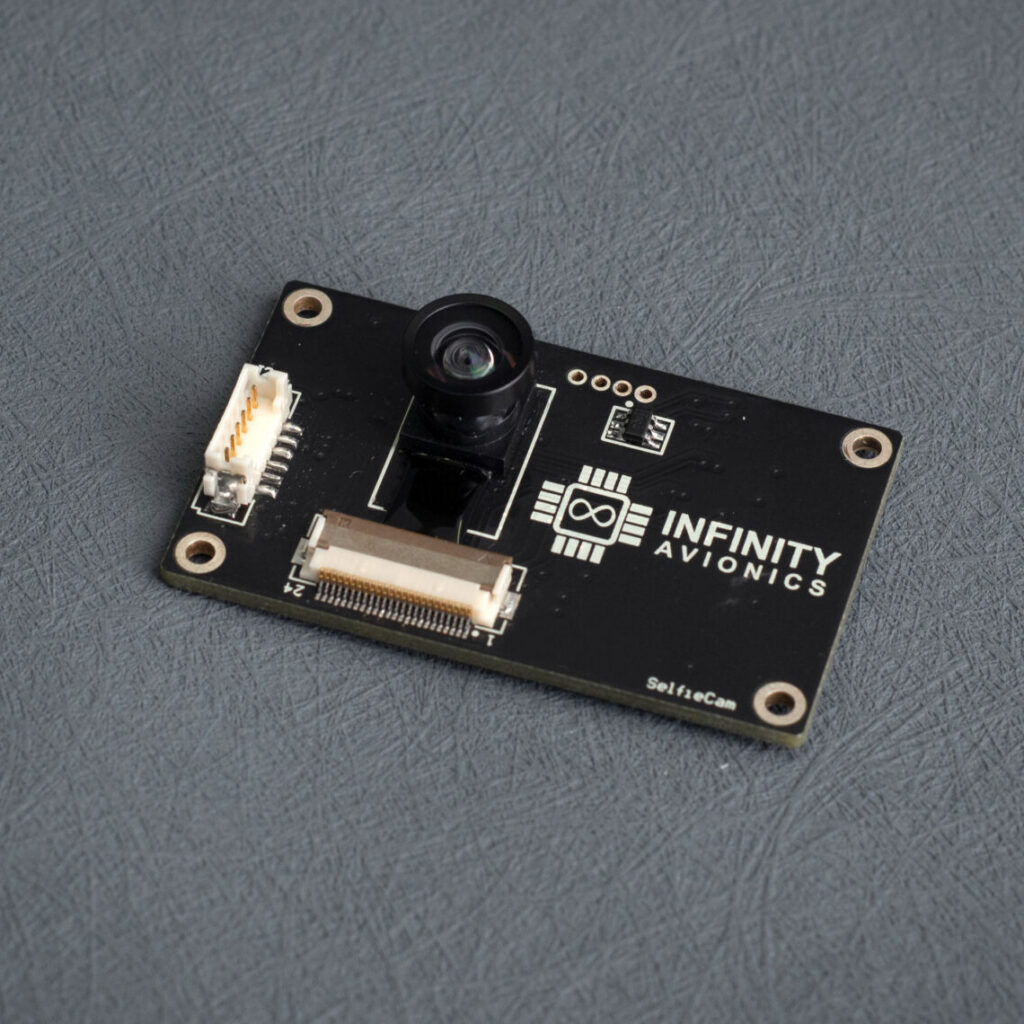

What is SelfieCam Video
SelfieCam is a small form factor, TRL 9, space asset monitoring camera with demonstrated flight heritage through numerous space missions.
Non-Volatile Memory
The camera can capture and save images in non-volatile memory. It is designed with ease of integration and operation in mind, providing on-orbit imaging capability to your mission.
Spacecraft Deployment Monitoring
The camera is ideal for spacecraft deployment monitoring such as solar panels and antennaes, spacecraft orientation identification or low-resolution earth imaging.
Easy data downlink
On-board JPEG encoding enables small image sizes to support easy data downlink even with a weaker communication link. SelfieCam can be directly mounted on spacecraft chassis.
Selfiecam Specifications
| PARAMETER | VALUE |
|---|---|
| Resolution | 1024 x 768 |
| Field of view | 40/90/110 degrees |
| MRAM Memory | 4 Mbit |
| On-board storage | 500 images |
| Power consumption | 750mW |
| Frame rate | Up to 12 FPS |
| Interface | UART |
| Operating temperature | -20 C to 60 C |
| Mass | 10 grams |
| Dimensions | 50 mm x 30 mm |
| Baud rate | 115200 |
| Supply voltage | 5 V |
| TRL | 9 |
