What is Orion12MP

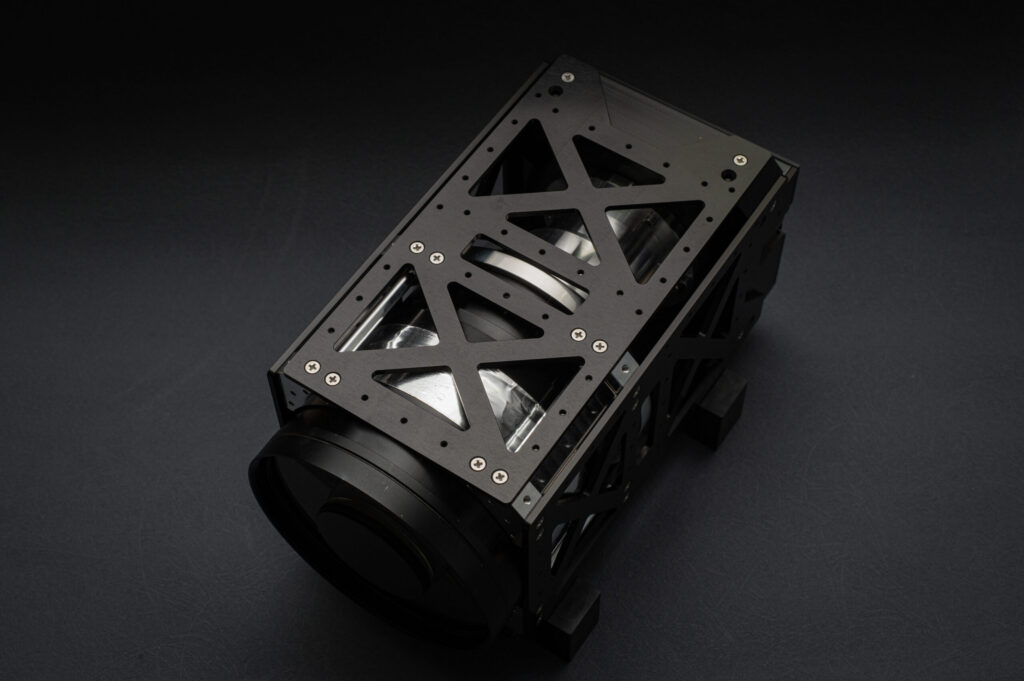

Orion12MP is a 12 Megapixel RGB/ Monochrome camera back end electronics unit which can be combined with application specific optical assemblies.
High FPS Image Capture Capability
The camera provides high FPS image capture capability with on-board non-volatile data storage options.
Application
Orion12MP is suitable for a range of space applications such as Earth observation, hyperspectral imaging, space based space surveillance, and docking/rendezvous applications based on the selected optical assembly.

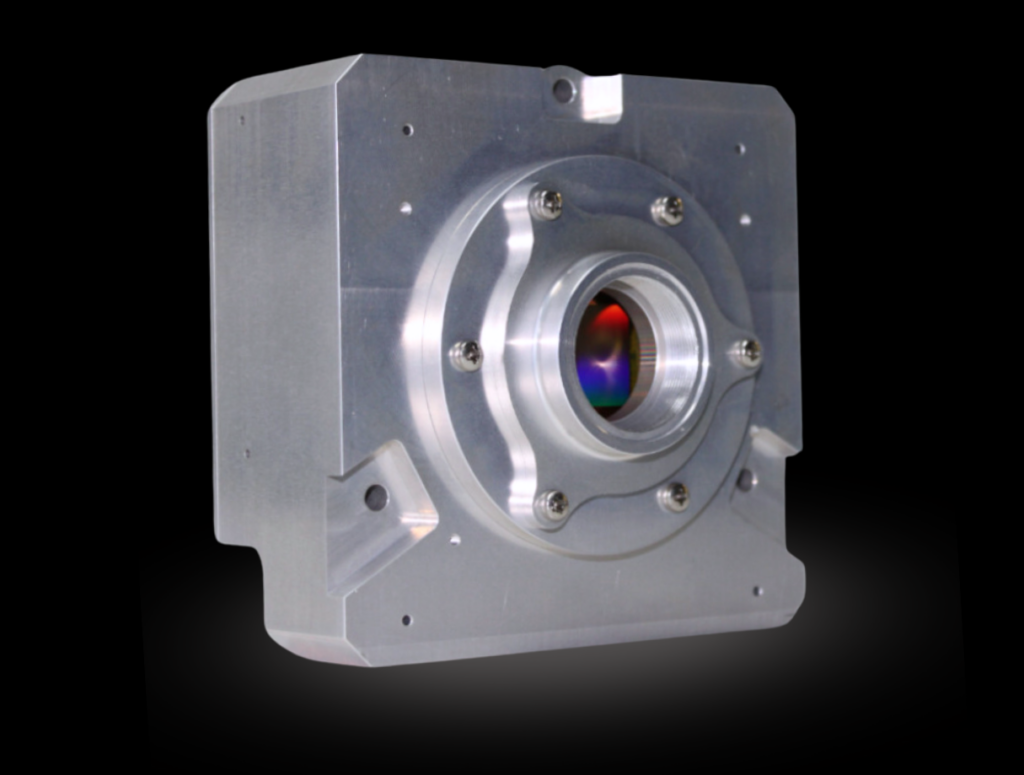

Highly Customizable
Orion12MP is designed leveraging a modular methodology providing the ability to customize the camera with different sensors and interface options with reduced engineering effort and cost. The system has been qualified for thermal vacuum, vibration and shock.
Orion12mp Specifications
| PARAMETER | VALUE |
|---|---|
| Pixel resolution | 12 MP (4096 x 3072) |
| Pixel size | 5.5 um |
| Sensor technology | CMOS Global shutter |
| Frames per second | Up to 100 at full resolution |
| Control interface | UART / RS485 |
| Bulk data interface | USB / UART / RS485 / Ethernet |
| Power supply | 5V DC |
| Power consumption | 3 W typical / 6 W while imaging |
| Operating temperature | -10 C to 50 C |
| On-board RAM | Up to 290 full-resolution images |
| On-board non-volatile memory | 256 Gbytes |
| Dimension | 100mm x 100mm x 55mm |
| Weight | 500 grams |
orion12mp optical options
Orion12MP
Orion12MP backend specifications. Our Orion12MP cameras are trusted by commercial and government organizations worldwide.
| PARAMETER | VALUE |
|---|---|
| Pixel resolution | 12 MP (4096 x 3072) |
| Pixel size | 5.5 um |
| Sensor technology | CMOS Global shutter |
| Frames per second | Up to 100 at full resolution |
| Control interface | UART / RS485 |
| Bulk data interface | USB / UART / RS485 / Ethernet |
| Power supply | 5V DC |
| Power consumption | 3 W typical / 6 W while imaging |
| Operating temperature | -10 C to 50 C |
| On-board RAM | Up to 290 full-resolution images |
| On-board non-volatile memory | 256 Gbytes |
| Dimension | 100mm x 100mm x 55mm |
| Weight | 500 grams |

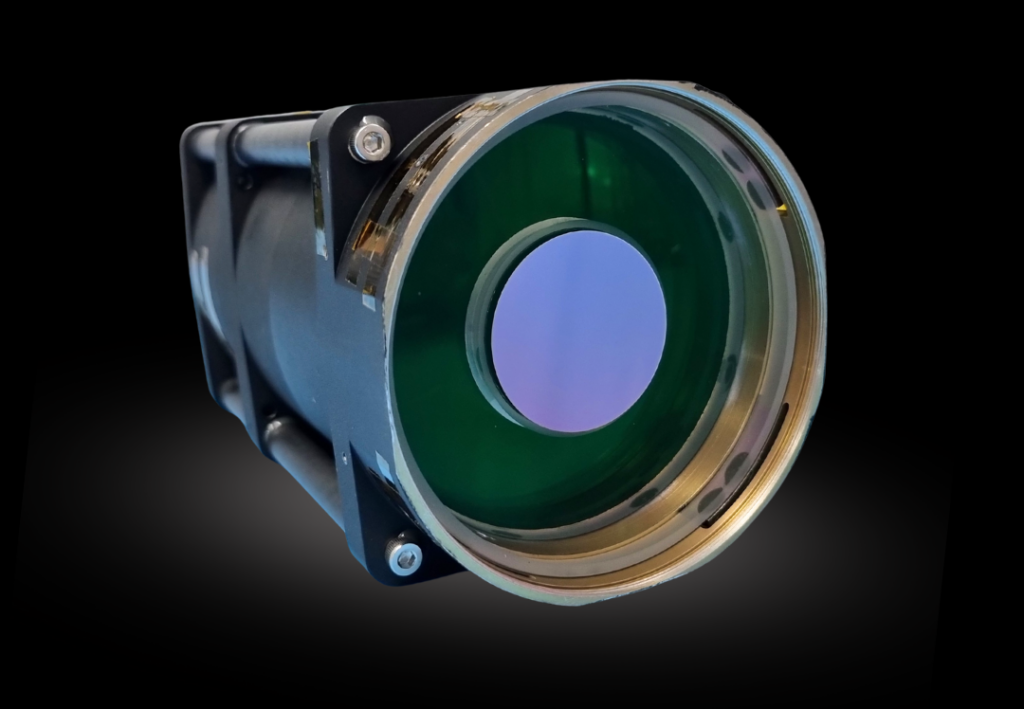

Orion12MP-550
Orion12MP-550 camera comes with a 550mm focal length space grade optical assembly to support earth observation and space based space surveillance applications.
| PARAMETER | VALUE |
|---|---|
| Spatial resolution (GSD) | 5m at 500 km orbit |
| Focal length | 550 mm |
| F number | 6 |
| Spectral range | 400 nm - 1000 nm (customizable) |
| Dimensions | 100 mm x 100 mm x 250 mm |
| Weight | 1.5 kg |
