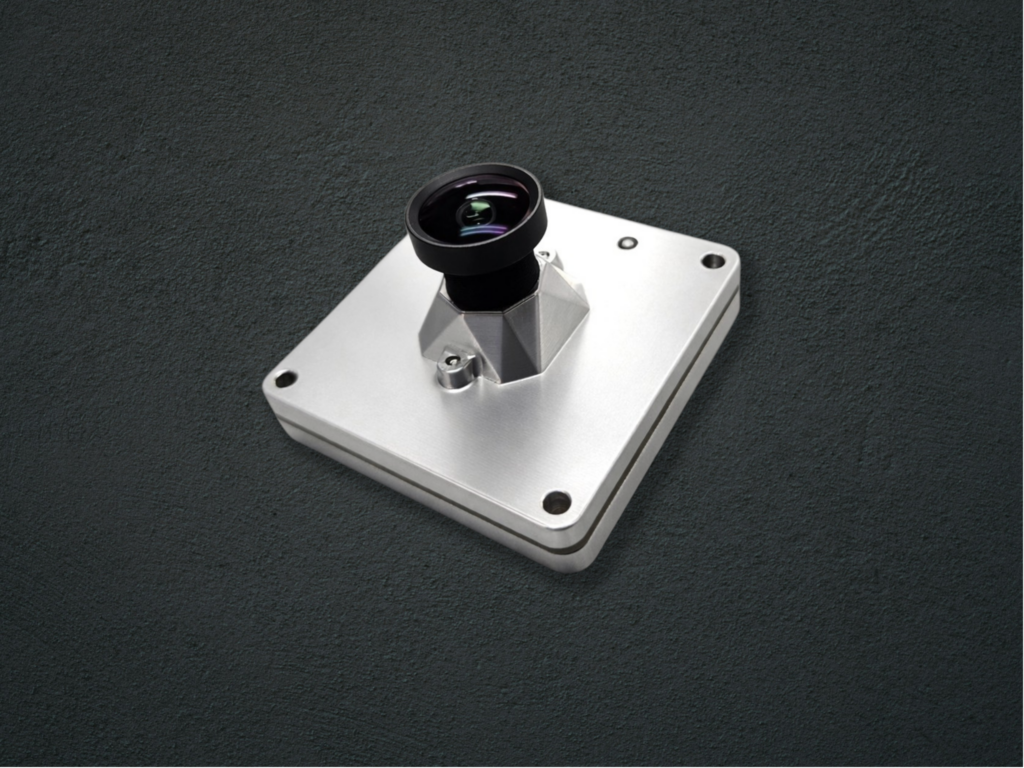

What is Aquila
Aquila is a FHD/ HD camera designed for space applications. The camera comes with on-board flash storage to support image capture and retrieval at a later stage. Additionally, Aquila can support image data streaming to support real time visual feedback and decision making.
Snapshot mode
Snapshot mode captures FHD/HD still images in compressed or raw formats to on-board memory for later retrieval.
Video capture and save on-board
Video mode supports FHD/HD video capture to on-board memory for later retreival.
Video data streaming over Ethernet interface
Video streaming mode enables streaming FHD/HD video over ethernet interface in real time for immediate visual feedback and RPO applications.
Aquila Specifications
| PARAMETER | VALUE |
|---|---|
| Resolution | HD/ FHD |
| Spectrum | RGB |
| Supply voltage | 5V dc |
| Power consumption | 2W max |
| Communication Interface | UART/ Ethernet |
| FoV (degrees) | 90, 60, or 15 |
| Form factor | 50 mm x 50 mm |
| Weight | 55 g |
| TRL | 4 |
CHOOSE the PERFECT CAMERA for your imaging needS
Aquila variants
Aquila camera is available in three performance variants to best suit end-user needs. The Aquila Lite variant offers a cost-effective entry-level camera capabilities, Aquila Plus offers additional features and data streaming while the top of the range Aquila Pro variant offers advanced camera features and 30 FPS FHD resolution video capture and streaming. Refer to the adjacent table for feature comparison between Aquila variants.
| Lite | Plus | Pro | |
|---|---|---|---|
| RGB Sensor |  | | |
| 1280 x 720 - HD | | | |
| 1920 x 1080 - FHD | |
||
| JPEG or RGB565 | | | |
| Snapshot Mode | | | |
| 20 FPS HD Video | | |
|
| 30 FPS HD Video | |
||
| 30 FPS FHD Video | |
||
| Data Streaming | | |
|
| On-Board Storage | | | |
| Auto Gain / Exposure | | | |
| Manual Gain/ Exposure | |
||
| 90° FOV Lens | | | |
| Additional Lens Options | |
||
| UART Iinterface | | | |
| Ethernet Interface | | |
