EDGE AI | sensor fusion | Autonomy
What is BRAIN

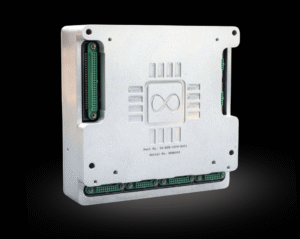

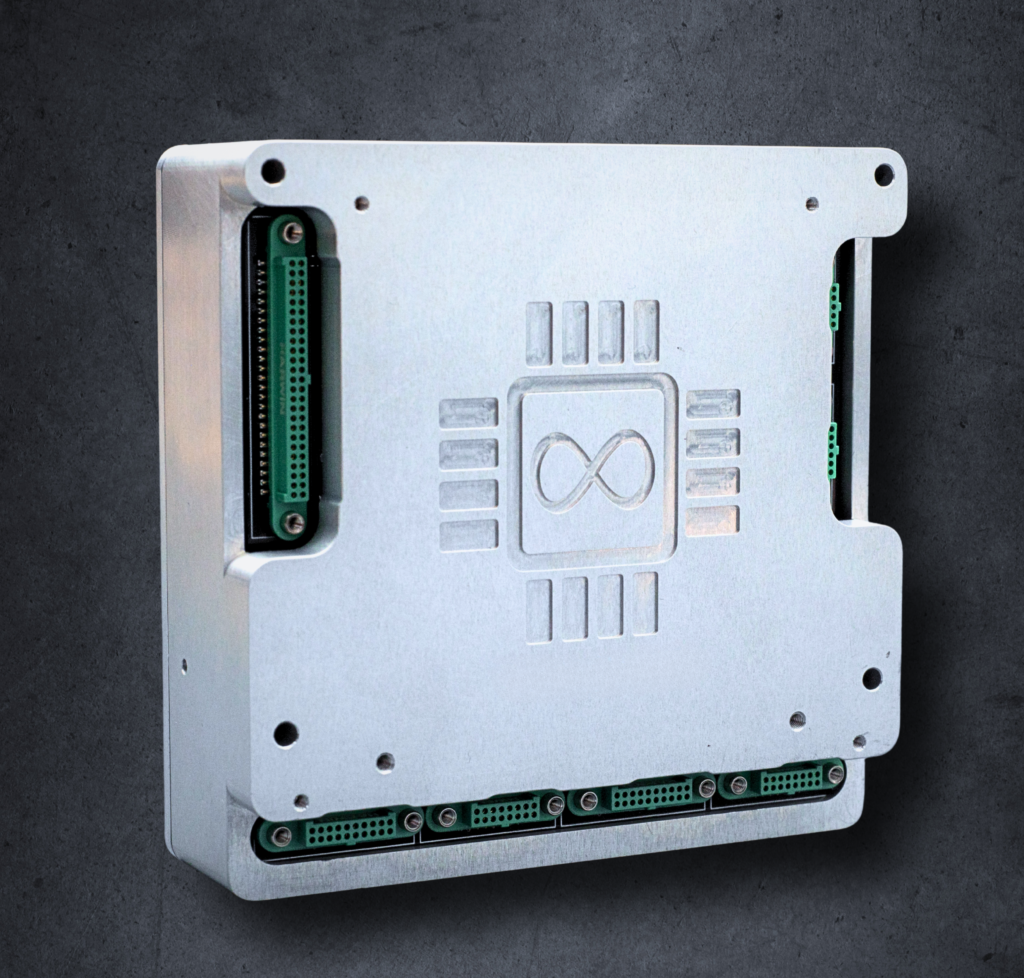

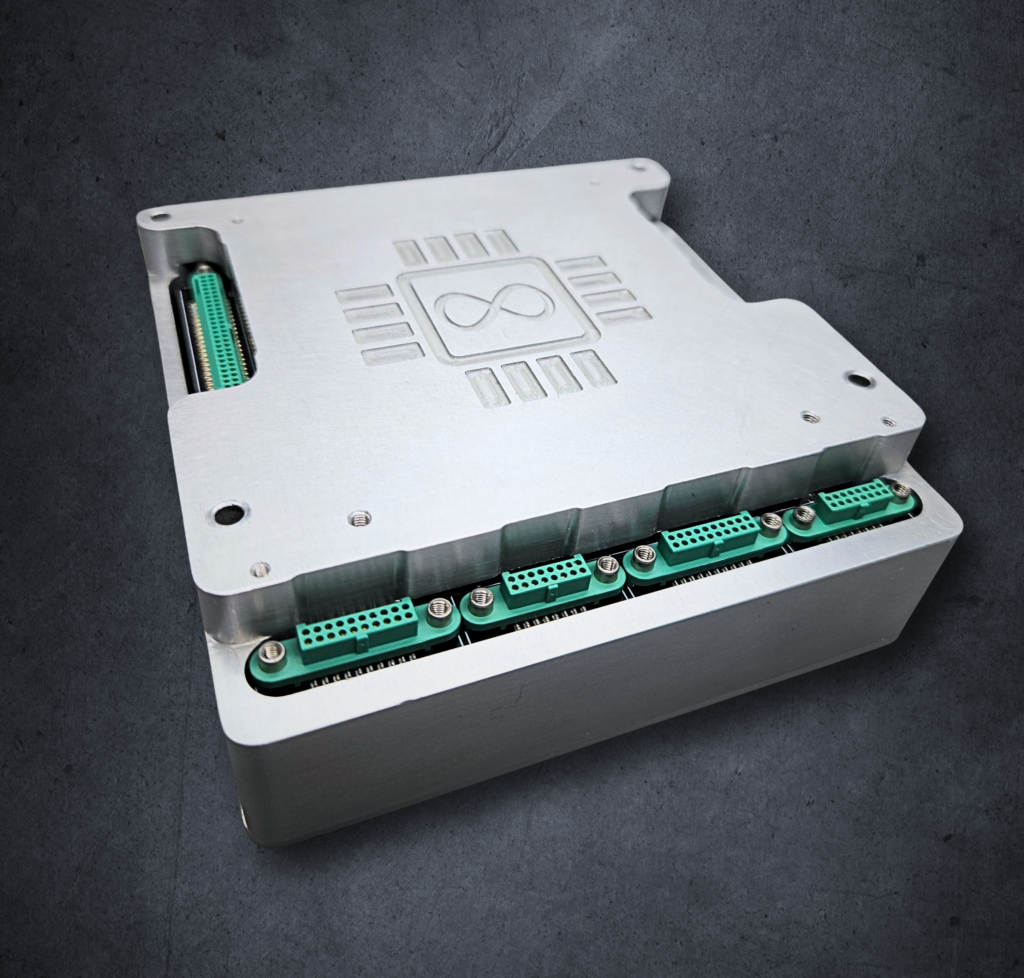

Infinity Avionics BRAIN Processor is a NVIDIA Jetson Orin NX based TRL9 edge processing solution for space applications. BRAIN brings up to 100 TOPS processing power to enable space edge processing.
Space Ready
The edge processor comes with ruggedized enclosure and easy to integrate thermal interface. BRAIN Processor is available with polymer based radiation enclosures for added radiation protection.
Autonomy
Combine with data streaming cameras like Leo2MP, Aquila, or Draco with powerful BRAIN processor to support real time process monitoring, control loops, and improved autonomy.
Space Edge Data Processing
BRAIN processor can be used as a general purpose space edge processor to support on-orbit image processing, data processing, sensor fusion, and artificial intelligence and machine learning
Brain Specifications
| PARAMETER | VALUE |
|---|---|
| Processor | Nvidia Jetson Orin NX 16GB RAM |
| NVM2 storage | PCle Gen3 256GB |
| Input voltage | 12V |
| Input power | 25 W max |
| Interfaces | Ethernet, USB, UART, RS485, GPIOs |
| Form factor | 100mm x 100mm x 35mm |
| Weight | 500 grams |
| Camera interfaces | Ethernet, USB2, USB3 |
| Radiation Shield | Optional |
| TRL | 9 |
